Regular price $10,200.00
 Package Components

MS 750 $10,200

Cassette Only Weight 155 lbs

MS 750 with Mount $11,371

Cassette and Adaptor Mount (MSM 2)
MS 750 2 Circuit w GRA-M 26 Package $20,455

Cassette, Mount, GRA-M 26,  R7CFS Rotator, Valves, Fittings and Hoses for 2 Circuit Machine, Toolkit with 2 extra saw blades and 2 extra chains

MS 750 3 Circuit w GRA-M 26 Package $19,619 Cassette, Mount, GRA-M 26, R7CFF Rotator, Valves, Fittings and Hoses for 3 Circuit MachineToolkit with 2 extra saw blades and 2 extra chains
MS 750 2 Circuit w GRA-M 42 Package $22,306 Cassette, Mount, GRA-M 42,  R7CFS Rotator, Valves, Fittings and Hoses for 2 Circuit Machine, Toolkit with 2 extra saw blades and 2 extra chains
MS 750 3 Circuit w GRA-M 42 Package $21,859 Cassette, Mount, GRA-M 42, R7CFF Rotator, Valves, Fittings and Hoses for 3 Circuit MachineToolkit with 2 extra saw blades and 2 extra chains



The largest and heaviest of our grapple saws. It has a mechanical chain tensioner and a 404” pitch chain. This grapple saw is recommended for use with the GRA-M 27, GRA-M 41; regular series GRA-R 27, GRA-R 41; and double ram series grapples GRA-S 27, GRA-S 41.

MS 750 Cassette Dimensions
 Max Diameter Cut 29.55”
Weight 155 lbs
Min Oil Flow 35 gpm
Max Pressure 4300 psi



The chainsaw requires an additional flanged support arm to be attached to the log grapple, the MSM 2 Hydraulic Chainsaw Mount Bracket. This support rests below the rotator and allows the saw to function without limiting the use of the log grapple. The matching support and chainsaw cassette can be purchased as a set with the MS 500 w mount package.

Two installation options are available: 2 Circuit and 3 Circuit.  Please refer to our Pages section to determine your requirements.

2 Circuit Package includes

  • Either GRA-M 26 Single Ram Log Grapple, GRA-S 27 Double Ram Log Grapple, GRA-M 42 Single Ram Log Grapple, or the GRA-S 41 Double Ram Log Grapple
  • R7CFS 4 Port Hydraulic Rotator
  • MS 750 Hydraulic Chainsaw Cassette
  • MSM 2 Hydraulic Chainsaw Mount Bracket
  • Toolkit including 2 extra saw blades and 2 extra chains
  • Hoses, Fittings and Valves for 2 Circuit Package
    • Valves to activate the saw
    • All hoses up to the rotator
  • Does not included installation. Customer is responsible for attaching the hoses from rotator to the customer’s equipment (not provided).

3 Circuit Package includes

  • Either GRA-M 26 Single Ram Log Grapple, GRA-S 27 Double Ram Log Grapple, GRA-M 42 Single Ram Log Grapple, or the GRA-S 41 Double Ram Log Grapple

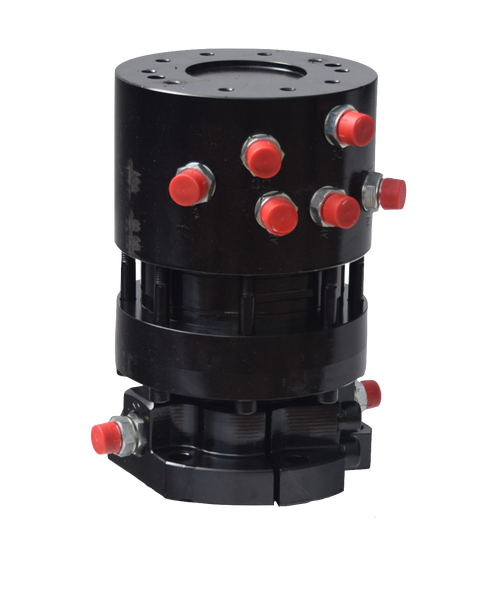

  • R7CFF 6 Port Hydraulic Rotator
  • MS 750 Hydraulic Chainsaw Cassette
  • MSM 2 Hydraulic Chainsaw Mount Bracket
  • Toolkit including 2 extra saw blades and 2 extra chains
  • Hoses,fittings and valves for 3 circuit package up to the rotator
  • Does not include installation to the customer’s machine.  The customer is responsible for attaching the hoses to the rotator from the customer’s equipment (not provided).
