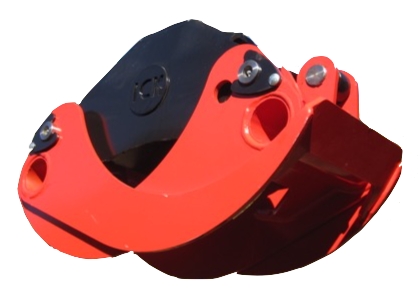

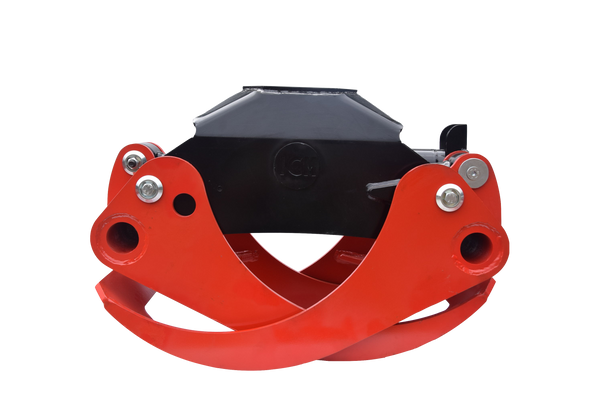

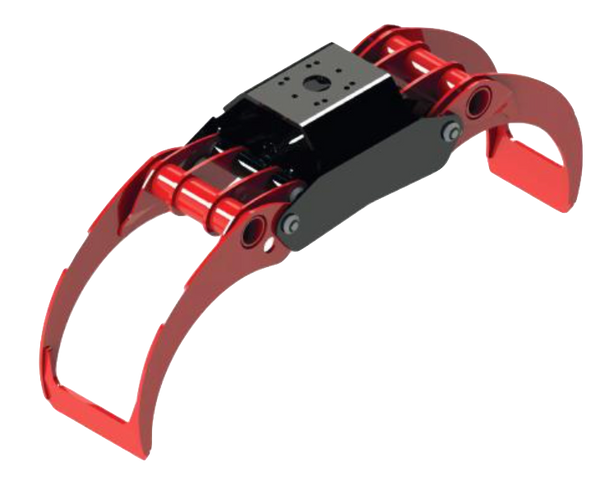

Log grabble with horizontal cylinders.
| Measure |
GRA-M 26 |
GRA-M 30 |
GRA-M 36 |
| Weight Lbs |
430 |
441 |
650 |
| Capacity Lbs |
6600 |
8800 |
11023 |
| Max Pressure PSI |
3600 |
3600 |
3600 |

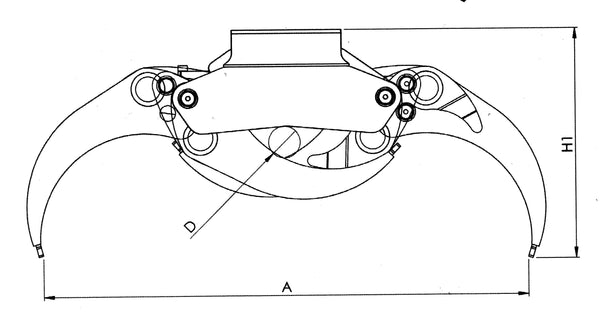

| A inches |
61.0 |
66.9 |
73.6 |

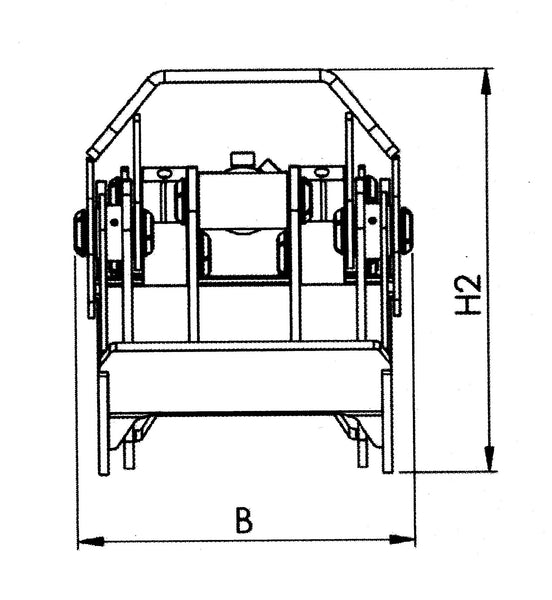

| B inches |
17.7 |
17.7 |
20.5 |
| H1 inches |
29.9 |
31.7 |
32.3 |
| H2 inches |
21.2 |
20.7 |
23 |
| D inches |
4.0 |
2.8 |
5.7 |
| Compatible Rotators |
R5CFS, R7CFS, R7CFF |
R7CFS, R7CFF, R11CFS |
R7CFS, R7CFF, R11CFS |
| Measure |
GRA-M 42 |
GRA-M 52 |
GRA-M 57 |
| Weight Lbs |
738
|
816 |
617 |
| Capacity Lbs |
11000 |
15400 |
17635 |
| Max Pressure PSI |
3600 |
3600 |
3600 |
| A inches |
81.1 |
83.0 |
84.6 |
| B inches |
20.5 |
20.5 |
19.6 |
| H1 inches |
34.6 |
35.4 |
36.6 |
| H2 inches |
26.2 |
26.8 |
27.9 |
| D inches |
6.7 |
6.3 |
6.3 |
| Compatible Rotators |
R11CFS |
R11CFS |
R16CFS |
