Opposed Beams Outrigger- TL

Opposed Beams Outrigger- TL

Opposed Beams Outrigger- TL

$1,853.00

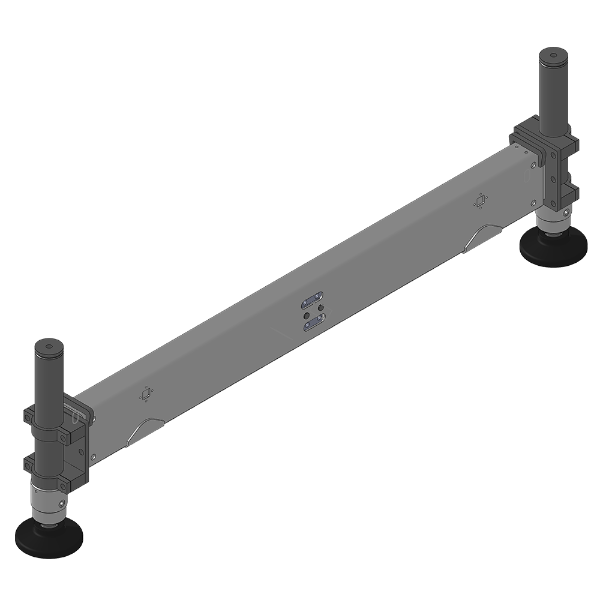

Manual and hydraulic extendible outriggers, with opposed beams

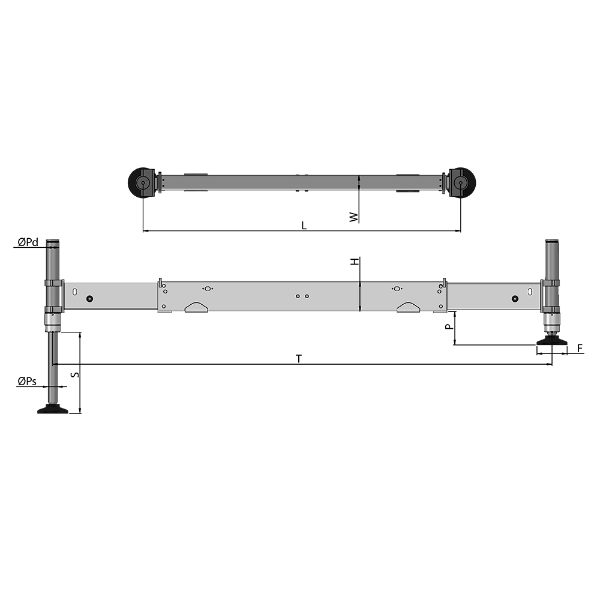

Measure	TL5M 2800N	TL12M 3300N	TL25M 3300N	TL25M 3300L
Weight lbs	242	286	440	462
Crane ton x m	2.0 - 5.0	5.0 - 12.0	10.0 - 25.0	10.0 - 25.0
Cylinder	Normal	Normal	Normal	Long
L inches	70.8	82.6	82.6	82.6
E inches	19.6	23.6	23.6	23.6
T inches	110.2	129.9	129.9	129.9
O Ps inches	1.57	1.57	2.36	2.36
O Pd inches	2.76	2.76	3.35	3.35
H x W inches	4.72x3.15	5.91x3.94	7.87x3.94	7.87x3.94
S inches	13.9	13.9	17.3	25.3
O F inches	6.30	6.30	7.87	7.87
B inches	20.8	20.8	27.3	34.2

Measure	TL25H 3300N	TL25H 3300L	TL32M 3300S	TL32M 3300N
Weight	462	462	507	496
Crane ton x m	10 - 25	10 - 25	18 - 32	18 - 32
Cylinder	Normal	Long	Short	Normal
L inches	82.6	82.6	82.6	82.6
E inches	23.6	23.6	23.6	23.6
T inches	129.9	129.9	129.9	129.9
O Ps inches	2.36	2.36	2.36	2.36
O Pd inches	3.35	3.35	3.74	3.74
H x W inches	7.87x3.94	7.87x3.94	7.87x3.94	7.87x3.94
S inches	17.3	25.3	17.9	20.8
O F inches	7.8	7.8	7.8	7.8
B inches	27.3	34.2	27.5	30.7

Measure	TL32M 3300L	TL32H 3300S	TL32H 3300N	TL32H 3300L
Weight lbs	529	551	562	573
Crane ton x m	18 - 32	18 - 32	18 - 32	18 - 32
Cylinder	Long	Short	Normal	Long
L inches	82.6	82.6	82.6	82.6
E inches	23.6	23.6	23.6	23.6
T inches	129.9	129.9	129.9	129.9
O Ps inches	2.36	2.36	2.36	2.36
O Pd inches	3.74	3.74	3.74	3.74
H x W inches	7.87x4.72	7.87x4.72	7.87x4.72	7.87x4.72
S inches	25.0	17.9	20.8	25.0
O F inches	7.8	7.8	7.8	7.8
B inches	34.0	27.5	30.7	34.2
